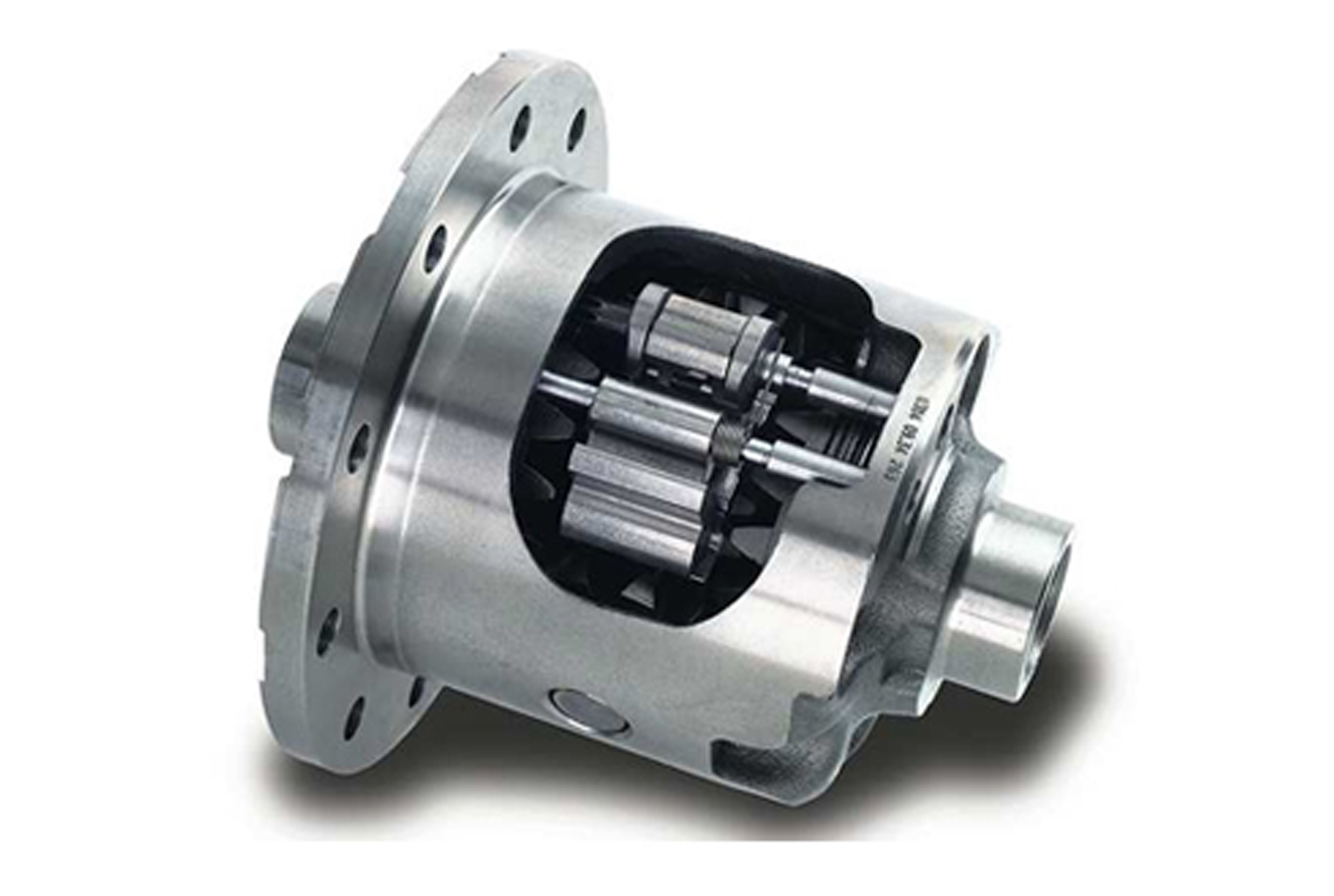

Mechanical Locking Differential

Clutches

Principle of Operation

  • Wheel speed difference (left to right) in excess of 100 RPM will cause a flyweight mechanism to open and engage a latching bracket
  • The stopped flyweight will trigger a self-energizing clutch system, which results in the cam plate ramping against a side gear
  • Ramping increases until both axles turn at the same speed (full ock), which prevents further wheel slip
  • At speeds above 20 mph, the latching bracket swings away from the flyweight mechanism and prevents lockup from occurring.

Benefits

  • Improved traction differentiates the vehicle relative to other rear wheel and four wheel drive vehicles on the market
  • Functions as a light bias limited slip differential during normal driving conditions; automatically provides full axle lock when needed
  • Maintenance free; requires no lube additives
  • Enhanced towing and off-road performance
  • Patented carbon friction disc technology enhances performance & durability
  • Automatic locking takes place within a fraction of a second, so smoothly that it is un-noticed by the average driver
  • Once the need for improved traction is gone, unlocking occurs automatically
  • Compatible with anti-lock brake systems and vehicle stability systems

The product is OE in Mahindra Thar Jeeps and compatible with lot of other vehicles manufacturers having DANA 44, OUTER 19 SPLINE and INNER 30 SPLINE Axle.
